# peerjs
要创建一个真正的webrtc应用还是有些小复杂的,特别是SDP交换(createOffer及createAnswer)、网络候选信息收集(ICE candidate),这些都需要开发人员对webrtc的机制有足够的了解,对webrtc初学者来讲有一定的开发门槛。
而peerjs开源项目简化了webrtc的开发过程,把SDP交换、ICE candidate这些偏底层的细节都做了封装,开发人员只需要关注应用本身就行了。 peerjs的核心对象Peer,它有几个常用方法:
1. peer.connect 创建点对点的连接
1. peer.call 向另1个peer端发起音视频实时通信
1. peer.on 对各种事件的监控回调
1. peer.disconnect 断开连接
1. peer.reconnect 重新连接
1. peer.destroy 销毁对象
1
2
3
4
5
6
2
3
4
5
6
- 另外还有二个重要对象DataConnection、MediaConnection,其中:
- DataConnection用于收发数据(对应于webrtc中的DataChannel),它的所有方法中有一个重要的send方法,用于向另一个peer端发送数据; MediaConnection用于处理媒体流,它有一个重要的stream属性,表示关联的媒体流。
安装peerjs服务
- 安装nodejs
- 新建个peer项目目录 如dxpeer
- 在dxpeer 运行 npm install peer --S
- 最后个index.js
const fs = require('fs');
const { PeerServer } = require('peer');
const customGenerationFunction = () => (Math.random().toString(36) + '0000000000000000000').substr(2, 16);
const peerServer = PeerServer({
port: 9000,
path: '/dxPeer',
allow_discovery:true, //设置为真可以查看所有连接的用户
ssl: { // https证书
key:fs.readFileSync('./keys/2_duxinggj.com.key'),
cert:fs.readFileSync('./keys/1_duxinggj.com_bundle.crt')
},
generateClientId: customGenerationFunction // 生成随机的id
});
1
2
3
4
5
6
7
8
9
10
11
12
13
14
2
3
4
5
6
7
8
9
10
11
12
13
14
在cmd cmd 运行 node index 这样服务就跑起来了
- 查看是否安装成功 http://localhost:9000/dxPeer
- http://localhost:9000/dxPeer/peer/peers //获取在线用户
客户端
直接在vue项目的index.html 引入即可 peerjs1.3.1
<script>
window.Peer = Peer;
</script>
1
2
3
2
3
# 在全局状态里写peerjs
建立连接和初始化
peer = new window.Peer(userName, {
host: "duxinggj.com",
port: 8089,
path: "/dxPeer",
config: {
iceServers: [
{
urls: "stun:119.23.104.210:5349",
},
{
urls: "turn:119.23.104.210:3478",
username: "admin",
credential: "kiss1001",
},
],
sdpSemantics: "unified-plan",
},
});
peer.on("open", async (id) => {
console.log("peerJs服务连接成功!我的账号是:" + id);
});
// 监听用户连接
peer.on("connection", function (c) {
conn = c;
conn.on("data", function (data) { //监听对方发送来的data消息处理事件
switch (data) {
case "closecall":
current.close();
state.TheActive = 0;
state.hangUpload = false;
break;
...
}
});
});
// 监听呼叫
peer.on("call", async (call) => {
call.answer(stream); // 把流传给对方 对方才会播放视频
})
peer.on("close", function () {
console.log("peer--close");
});
// 监听会话销毁了
peer.on("destroy", function () {
console.log("destroy");
});
peer.on("disconnected", function () {
console.log("disconnected");
});
// 会话错误信息钩子回调
peer.on("error", function (e) {
})
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
35
36
37
38
39
40
41
42
43
44
45
46
47
48
49
50
51
52
53
54
55
56
拨号
const callFun = async (state, callName) => {
call = peer.call(callName, stream); // 呼叫对方
// 建立连接方便发消息
dataConnection = peer.connect(callName);
dataConnection.on("open", function () {
dataConnection.send("与用户" + state.userName + "连接成功!");
dataConnection.on("data", function (data) {
switch (data) {
case "closecall":
current.close();
state.TheActive = 0;
state.hangUpload = false;
break;
...
}
});
});
call.on("stream", (data) => {
console.log("监听到了流call播放");
console.log(data);
});
call.on("close", function (e) {
dataConnection.send("closecall");
});
call.on("error", function (err) {
console.error("通话的状态异常了", err);
});
call.on("disconnect", function (err) {
console.error("disconnect", err);
});
})
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
33
34
后面就是封装组件 和 全局状态管理了

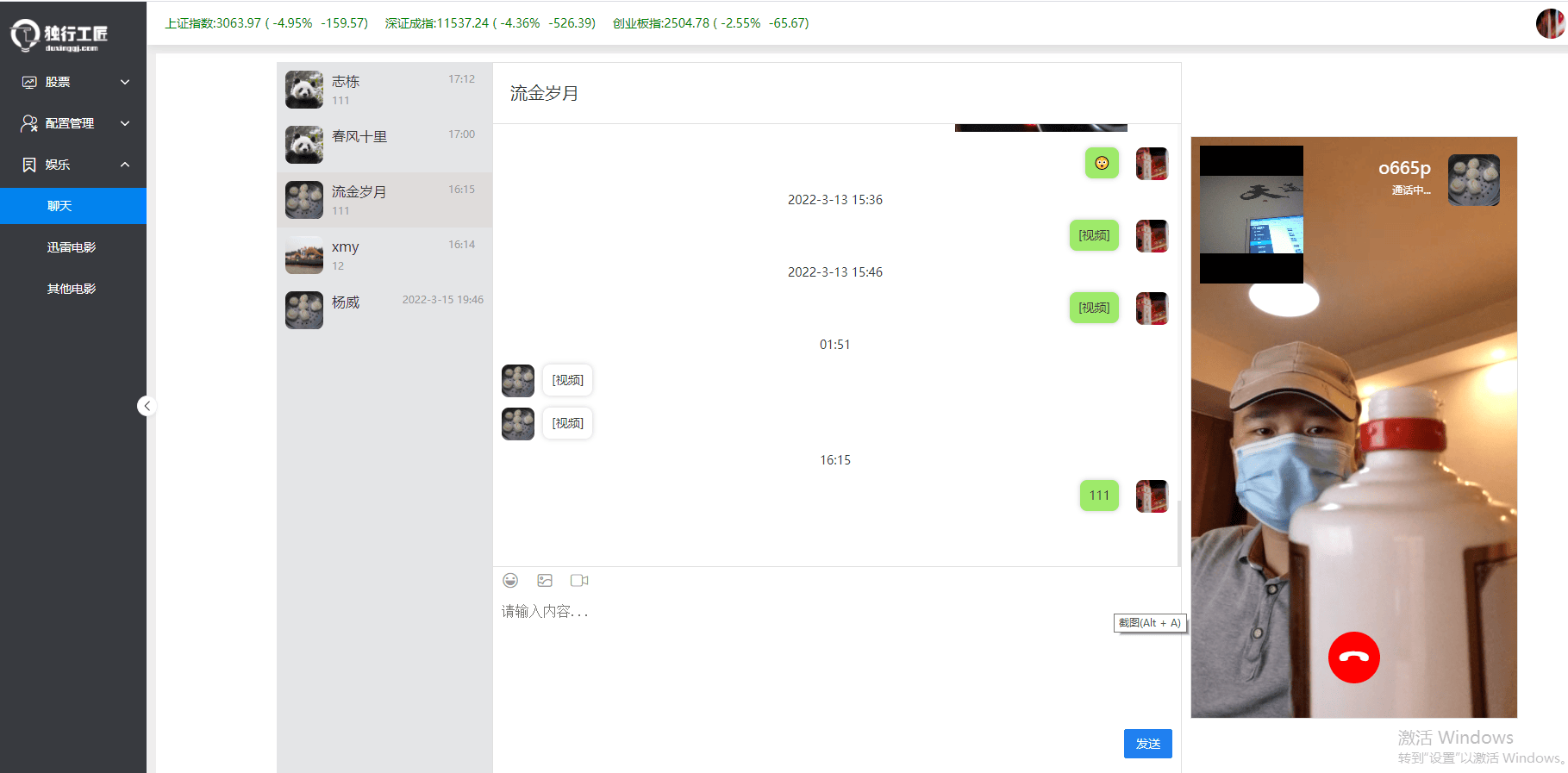

效果展示 高仿微信聊天
